SIPs Technology
Smart Building
Structural insulated panels (SIPs) are a high performance, environment friendly building system for residential and light commercial construction.

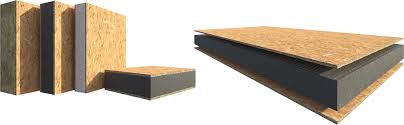

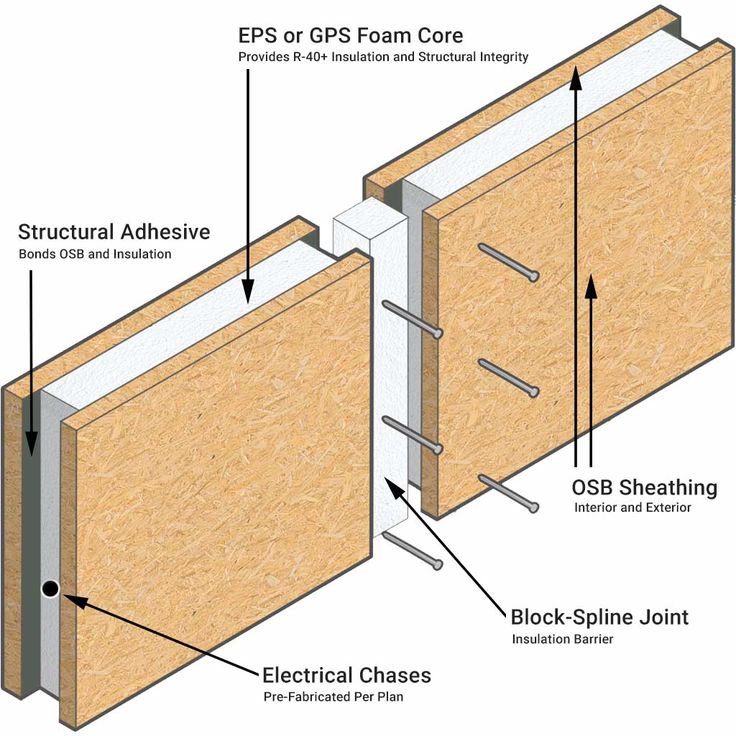

The panels consist of an insulating foam core, EPS*, sandwiched between two structural facings, typically oriented strand board (OSB)*.
Our SIPs are manufactured under factory controlled conditions and can be fabricated to fit nearly any building design.
The result is a building system that is extremely strong, energy efficient and cost effective. Building with SIPs will save you time, money and labour.
And an added bonus, this insulation core consists of 98% air and 2% chemical, therefore 100% recyclable.
Standard sizes are 2.440 x 1.220 x 70 mm - 320 mm section.
Fire Rated 60 minutes.
We can also make to specification.
SIPs are compliant in Ireland under ISO 22452:2011
Price per 8 x 4 Panel
The construction sector is changing. Carbon efficiency and transparency increasingly drive investment and procurement choices, with Environmental Product Declarations (EPDs)* often supporting decision-making.
KEY ADVANTAGES OF SIPS
Environmentally Friendly : Insulated core and OSB structure made from sustainable forest resources.
Excellent Thermal Performance: U-value as low as 0.10 w/m²k, limited cold bridging and superior air tightness.
Save Construction Time And Cost: Engineered components. No more transporting wood, plywood, insulation and end to waste cutting son site.
No more cutting for studs. Save 70 % time building wall. External and Internal.
Space Design - Open habitable roof space could transform a 3-bed house to a 5-bed house for little extra cost.
Light-Weight Structural Strength - The average weight per m2 of a Structural Insulated Panel is 30 kg.
Fire resistance of 60 minutes.
Price per Panel. Select from drop down menu.
European technical assessment ETA 18/0312 – 01 – 2018-09-1
Intended working life of the construction product.
Provisions made in this European Technical Assessment are based on an assumed intended working life of the building kit for the intended use of:
− 50 years for the load-bearing structure and for non-accessible components and materials;
− 25 years for repairable or replaceable components and materials like cladding, roofing
materials and integrated components, e.g. doors and windows.
The kits should be maintained according to manufacturer recommendations to reach intended working life.
The indications given on the working life cannot be interpreted as a guarantee given by the kit manufacturer or the Technical Assessment Body, but are to be regarded only as a means for choosing the appropriate product in relation to the expected, economically reasonable working life of the works.
email: info@gwp.ie for more information
What Are The Uses of SIP Panels?
SIP panels have many uses within construction and home building including:
Structural Insulated Panels can be used for home extensions to existing builds. SIPs can cater for single storey or two storey extensions, or even replacement roofs and extra storeys. The panels are quick to erect and provide insulation for the room, helping to keep costs down.
Whilst structural insulated panels are inherently structural, they can be used alongside other forms of structure utilising just their insulation and air-tightness properties, as well as the fact that the finished panels are easy to apply finishes to.
Due to the unique way that structural insulated panels work, they are perfectly suited for roof constructions. The panels are already insulated and span from wall to ridge beam usually without additional support. This means that the roof space can be left completely open to be used as further accommodation, storage or as a vaulted ceiling.
Flooring with SIP panels is ideal for extensions and conversions; the insulation in the panels can help to soundproof, whilst the speed of assembly can reduce the time and labour costs dramatically.
SIPs are ideal for new builds, whether residential, commercial or industrial, as kits are delivered pre-cut and pre-insulated, meaning that a typical house kit can be erected in 5-7 days, significantly reducing labour costs.
Click here for our three bedroom SIPs Modern home.
Contact us for latest on Integrating Mechanical Systems with SIPs.
